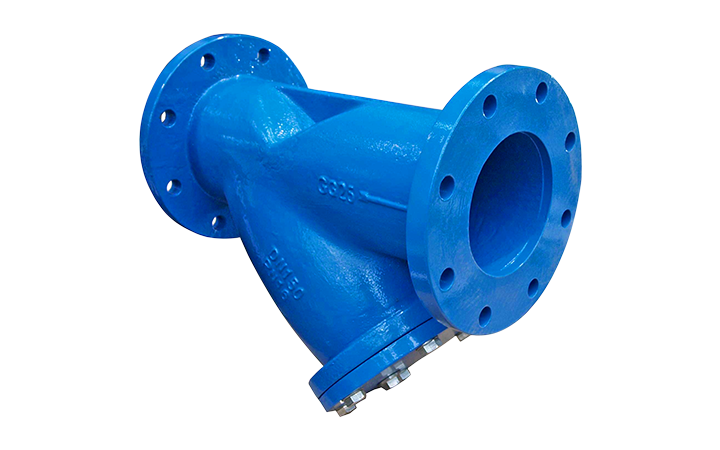

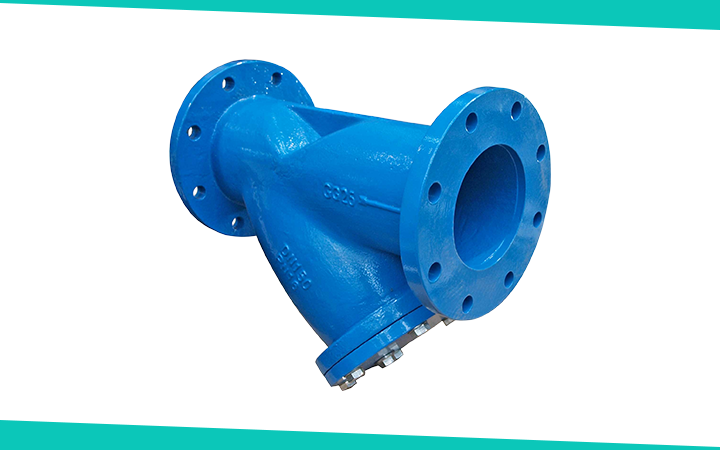

Y-Strainer

Description : Strainers are important components of piping systems to protect equipment from potential damage due to dirt and other particles that may be carried by the process fluid.

Options
* Grooved Y-strainer, Flanged Y-strainer, Threaded type Y-strainer is available. Enconnection: Groove to ISO 6182, Flange to BS EN 1092
PN10/PN16.
Application
EMACO Strainer used in many Industries, including: Chemical processing,
Petroleum, Power generation and marine.

* Connection Ends : Flange to ASME B16.1 CL 125

* Working Pressure: 300PSI (200PSI and 250PSI available upon request)

* Temperature Range: -10o- 200o graphite gasket 0o- 80o rubber gasket

* Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

* Threaded type also available upon request.

* Valve Body : EN-GJS-450-10

* Screen SS304 (Perforated), (Option-SS304, SS316 (Perforated, Knitted, Double Screen)

* Gasket Graphite+Acanthopore Plate EPDM

* Bonnet : EN-GJS-450-10

* Plug : Malleable Iron Galvanized, (Option- Bronze ASTM B584)

* Bolt Carbon Steel Zinc Plated SS304, (Option- SS304, SS316)

* Flat Washer Carbon Steel Zinc Plated SS304, (Option- SS304, SS316)
