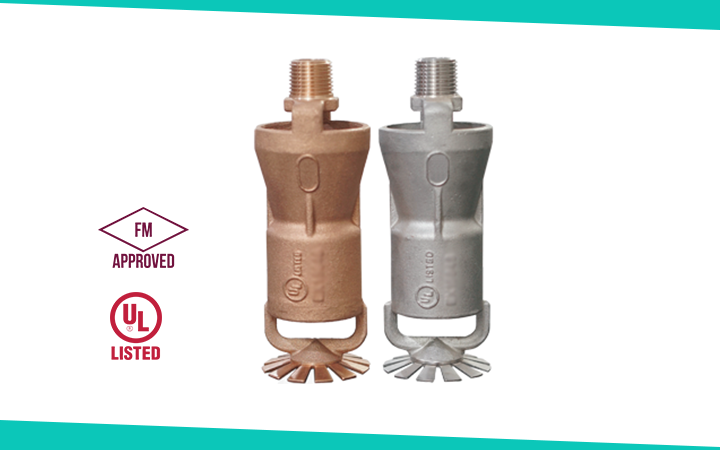

Air Foam Water Sprinkle

EMACO air foam water sprinkler is used in the deluge foam system to protect
the risk where foam is required to be applied from overhead sprinklers. It
protects the loading and unloading area in the event of a spill fie with low
expansion foam systems. These are useful in other wide applications i.e. air
craft hangers, warehousing.

* Open and air aspirating type
* Pattern of coverage is similar to the conventional sprinkler head
* Standard orifie with K-factor of 42
* Standard coverage: 100 sq. ft.
* Operates at minimum of 2 bar pressure and maximum of 4.1 bar


Mounting: Pendent
End connection: ½” BSPT (½” NPT optional)

UL Certified

File No: EX28123
