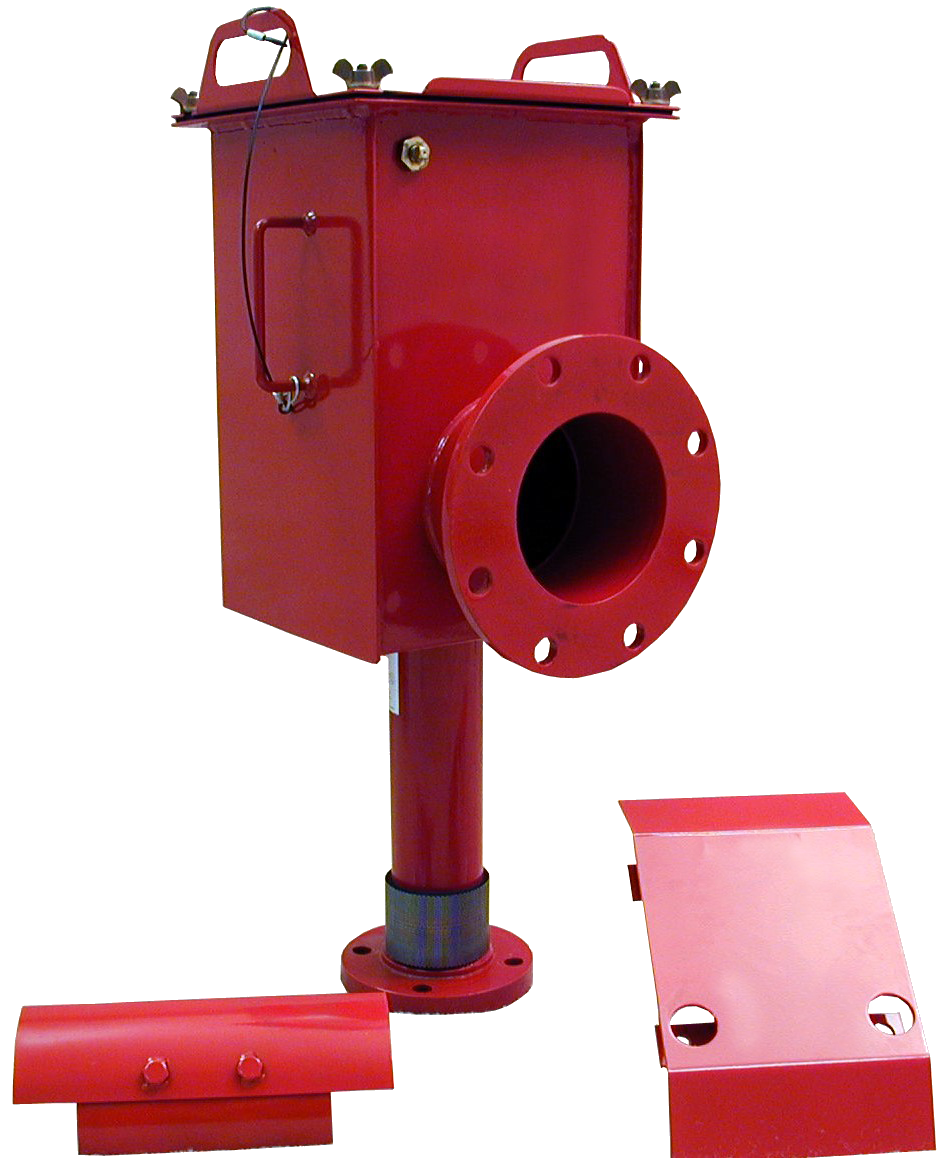

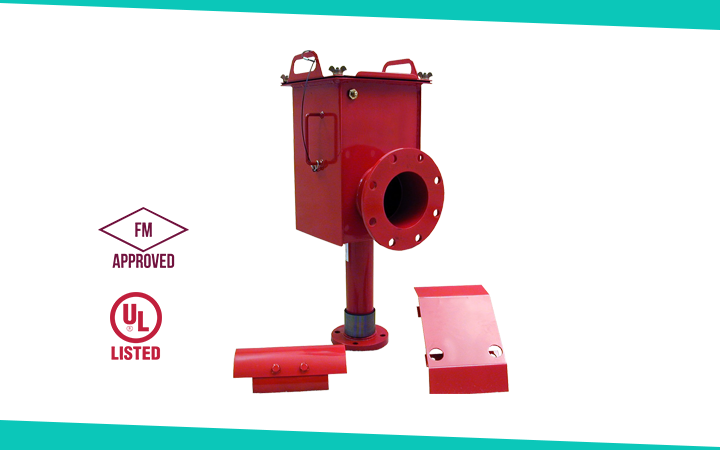

Air Foam Chamber

EMACO Air Foam Chamber is an air aspirating device which is used for the
protection of flammable liquid storage tanks. It protects vertical fied roof
(cone) liquid storage tanks, with or without internal floating roof. A foam
solution pipe extends from the proportioning source outside the dike wall
to the foam maker located upstream of the chamber. A deflector is located
inside the tank shell to deflect the discharge against the shell that results in a
relatively gentle foam application on the fuel surface.

* Working pressure: 2.8 to 7 bar
* Heavy duty welded construction
*  Frangible glass vapor seal
*  Controlled Air Flow proportional to liquid flow for optimum foam quality


* Finishing: Red Epoxy Coated OR Natural Finish
Connection flange: ANSI B16.5 Class 150#
Vapor seal: Glass, Graphite (optional)

UL Certified

File No: EX28124
